Fix KB5023696 Failed to Install with Error in Windows 10 (Solved!)

Best 7 methods to solve KB5023696 Failed to Install with Error 0x800f0845, 0x800f0922, 0x800705b4, 0x80070020 or other in Windows 10.

KB5023696 Failed to Install

Several people report facing problems when trying to receive March Patch Tuesday security update on Windows 10. KB5023696 failed to Install with error codes like 0x800f0922, 0x800f0845, 0x80070020, 0x800705b4, or another for them. In common cases, the Windows update is stuck on a certain percentage and later shows an error. Furthermore, after downloading the update when you restart you might notice Undoing changes made to your computer that ultimately results in reverting back to the old build.

To solve KB5023696 stuck and Windows update error, you might temporarily disable any third-party antimalware and attempt to install the update again. You may also need to clear some storage space on your system drive and run troubleshooter for successful installation. Windows update database cache reset and using SFC and DISM are the most helpful solutions in this case for multiple users. If none of these techniques works, a clean install may be required to resolve the problem. See – Windows 10 KB5023696 Update is available to download.

KB5023696 Failed to Install in Windows 10

Here is how to fix KB5023696 Failed to Install with Error in Windows 10 –

Way-1: Leverage Windows update Troubleshooter

This Troubleshooter is a highly-proficient program that is built-in into Windows 10 and can automatically discover and repair problems that are associated with Windows Update. If you are having trouble with the error message KB5023696 Failed to Install, using this fix-it tool can assist determine the underlying source of the problem and make an attempt to resolve it.

When you run the troubleshooter, it will carry out several diagnostic tests to decide whether or not there is an issue that is preventing the update from being installed. Here are the steps to be followed:

  1. To begin, click the Start button.
  2. Type the term – Troubleshoot.
  3. Hit – Enter.
  4. When you have opened the Settings app, navigate to the right side of the screen and select – Additional troubleshooters.
  5. Find Windows Update in the list and click on this.
  6. After that, click the option that says Run the troubleshooter.
  7. When the program has finished detecting and fixing any issues with the registry, the services, and the Windows update cache, you should restart your system.

Read – Use Common Windows Update Troubleshooter on Windows 11, 10, 8.1, 7.

Way-2: Install using Standalone package from Microsoft Update Catalog

In case you encounter any problems during the installation of KB5023706, the Microsoft update catalog can be a useful resource. This website hosts the standalone package for the 14th of March 2023 Security update for Windows 10 22H2 which you can manually install on your computer.

Receiving patches is crucial for ensuring smooth system operation without any disruptions. Therefore, please follow these steps:

  1. Visit –
  2. Locate the compatible update file in the list and click on – Download.
how to fix KB5023696 Failed to Install with Error in Windows 10
  1. A separate page will appear; click the link located there.
  2. Once the file is downloaded, navigate to the folder and double-click on the file –






  1. In case, any confirmation box prompts, select Yes to give approval.

Way-3: Resolve the Errors with SFC and DISM Commands

Using the command line tools SFC (System File Checker) and DISM (Deployment Image Servicing and Management) can assist in resolving problems or issues like, KB5023696 Failed to Install. SFC examines your system for damaged or missing system files and replaces them with the same from cache folder. If the update fails to owe to faulty system files, this utility can assist in resolving the problem.

Another command-line tool that can help in the resolution of problems is DISM utility. These are the steps to be followed for running SFC and DISM commands:

  1. Hit Win key + Q and type cmd.
  2. Choose – Run as administrator.
  3. Select Yes, when the User Account Control pop-up displays.
  4. Type sfc /scannow into the Administrator: Command Prompt box.
  5. Press the Enter key.
  6. Then, restart your computer when the utility has completed its duty to ensure that the update error has been resolved.
  7. If the problem continues, execute below commands in following order:
DISM /Online /Cleanup-Image /CheckHealth
DISM /Online /Cleanup-Image /ScanHealth
DISM /Online /Cleanup-Image /RestoreHealth
running dism command in cmd with administrator privilege
  1. Finally, restart your computer.

Way-4: Remove Third-Party Programs and Antimalware

Another accurate solution to fix the concerned error KB5023696 0x800f0922 or any other is by removing or uninstalling the third-party software and antimalware from your Windows 10 computer.

This is because some external products such as antimalware software that may interfere with the Windows Update process, preventing the update from installing. Here are the steps which you need to follow:

  1. Choose Run after right-clicking on Start.
  2. Enter appwiz.cpl.
  3. Find the third-party tool in the Programs and Features windows list.
  4. To highlight the item, click on it.
  5. Then click on – Uninstall.

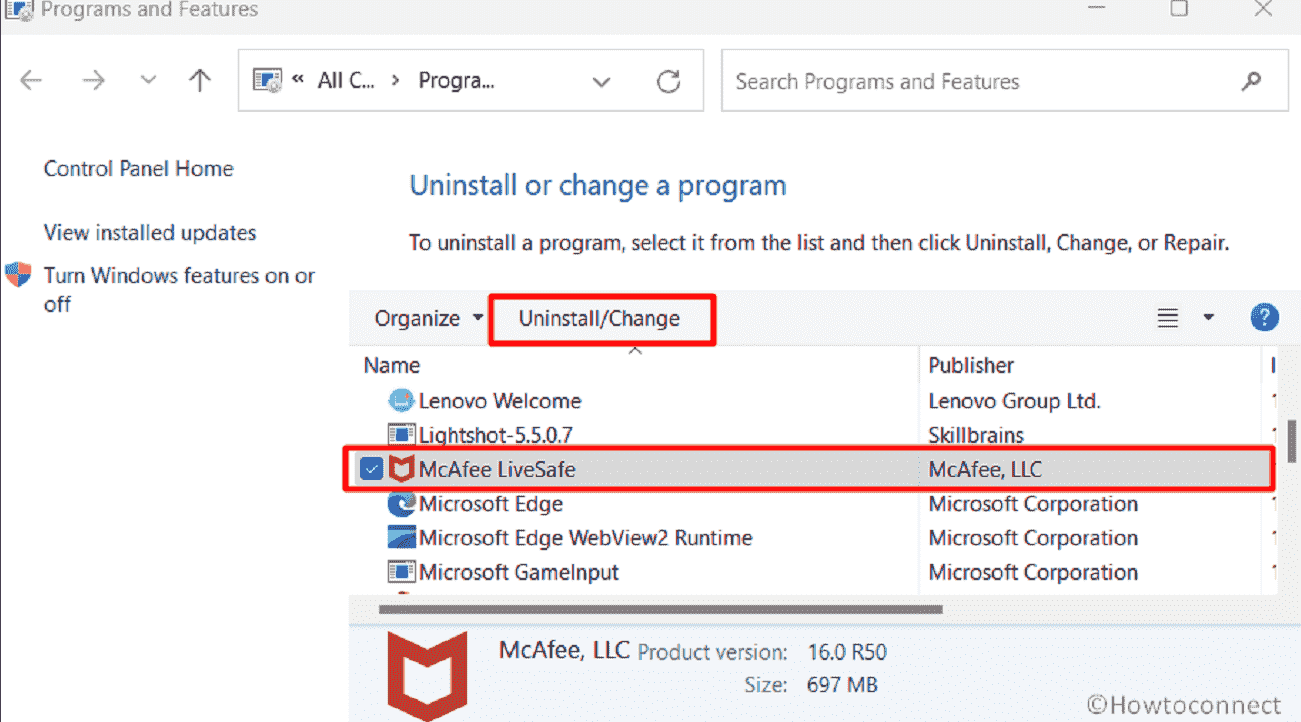

removing antivirus from programs and features control panel
  1. Choose Yes to verify the operation, and then let the process finish running on its own.
  2. In case, any wizard opens, follow the recommendations presented.
  3. If you have several apps installed, go through the instructions again and uninstall them one by one.
  4. Go to C:\Users\yourusername\AppData\Local and delete the leftover files and folders of the removed program.
  5. In the same way, navigate to C:\Users\yourusername\AppData\Roaming and delete the leftover.
  6. If still, the third-party tool is disturbing you can get help from How to Remove Traces of Uninstalled Programs in Registry on Windows 11 or 10.
  7. Restart your computer to determine if the problem remains.

Way-5: Reset the Windows Update Database Cache to Default

Changing the Windows Update database cache to default can help fix KB5023696 Failed to Install in your system. This is because sometimes the Windows Update cache can become corrupted or outdated, which can prevent new updates from installing properly. Here are the steps to be followed:

  1. Download Reset Windows 10
  2. file must be extracted.
  3. Locate and right-click the WuReset.bat file and select Run as administrator.
  4. When the command prompt advises you to press any key to continue…, do so.
  5. Wait until the repair is completed before restarting your computer.
  6. Then navigate to Settings > Update and security.
  7. Check for updates by clicking the button.

Way-6: Correct Startup Type and Status of Windows Update related Services

Closing the startup type and status of Windows Update related services might help in resolving KB5023696 Failed to Install error. As a solution, follow the below-mentioned steps:

  1. To open Run window, press Windows key + R simultaneously.
  2. Type Services.msc.
  3. Then, hit – Enter.
  4. Try locating Cryptographic Services.
  5. Right-click on it and choose the Restart option.
KB5023696 Failed to Install 0x800f0845
  1. Check the Status column of the Cryptographic Services and make sure that it is showing Running. If it isn’t, then double-click this item.
  2. Select Automatic for Startup type.
  3. Click on Start from the Services status area.
  4. Click the Apply and OK options.
  5.  Repeat the same steps with Windows Update and Cryptographic Services.
  6. Now check for updates to install KB5023696.

Way-7: Employ an In-Place Upgrade

An in-place upgrade includes reinstalling Windows on top of itself, which can alleviate issues that were previously preventing the update from installing properly. By employing it this upgrade can assist in resolving troubles with KB5023696 0x800f0845 or other error. Follow these steps to make an in-place upgrade:

  1. Firstly, go to
  2. Go to the ‘Create Windows 10 installation media‘ section at the bottom of the page.
  3. Select – Download tool now.
  4. Start the installation (by double-clicking on the .exe file).
  5. Choose Yes on the User account control screen.
  6. Accept the terms of the agreement.
  7. Choose – Upgrade this PC now.
  8. Then, press the Next button.
  9. After that, click – Install.
  10. Finally, KB5023696 will be installed in some minutes.

KB5023696 Failed to Install with Error in Windows 10 can be a frustrating issue to deal with, through this post we have provided 6 potential ways to solve this error. By trying these methods, we hope you can resolve this issue quite easily.

Way-1: Leverage Windows update Troubleshooter
Way-2: Install using Standalone package from Microsoft Update Catalog
Way-3: Resolve the Errors with SFC and DISM Commands
Way-4: Remove Third-Party Programs and Antimalware
Way-5: Reset the Windows Update Database Cache to Default
Way-6: Correct Startup Type and Status of Windows Update related Services
Way-7: Employ an In-Place Upgrade

That’s all!!
